The low centre of gravity and solid structure of the semi dump trailers make it more stable in driving. Dump semi trailer can be more adaptable to different road conditions. The heavy duty dump trailers is applied to safety designs. For instance, a double cargo lock on the back door and a flip stand to ensure the cargo is safe.It also aims to prevent accidental fall and accident. Heavy duty dump trailers often with the addition of a fire extinguisher rack or a lighting system, and so on. They will increase security and convenience.
Solid structure of semi dump trailers : 480mm high double board main beam
The double plate main beam of the semi dump trailers is designed to be 480 mm high. The whole load capacity of the heavy duty dump trailers is guranteed. This design allows the semi dump trailers to be more stable when carrying heavy items. It makes it possible to maintain good performance even in rough conditions, thereby reducing the risk of vibration and tilting.
T700 high strength structure steel
The whole car body takes good advantage of T700 high strength structure steel. This material owns high strength and the nice toughness. It can withstand the outside pressure and the impact effectively. Compared with common steel, T700 steel is good at reducing the body weight. The overall durability and prolong the service life is prolonged effectively.
4 sub-beams under the base plate
Four sub beams are arranged at the lower end of the semi dump trailers to improve the structure stability and load bearing capacity. The sub beams can effectively distribute the load of the semi dump trailers under heavy load. So the heavy duty dump trailers are stable and safe.

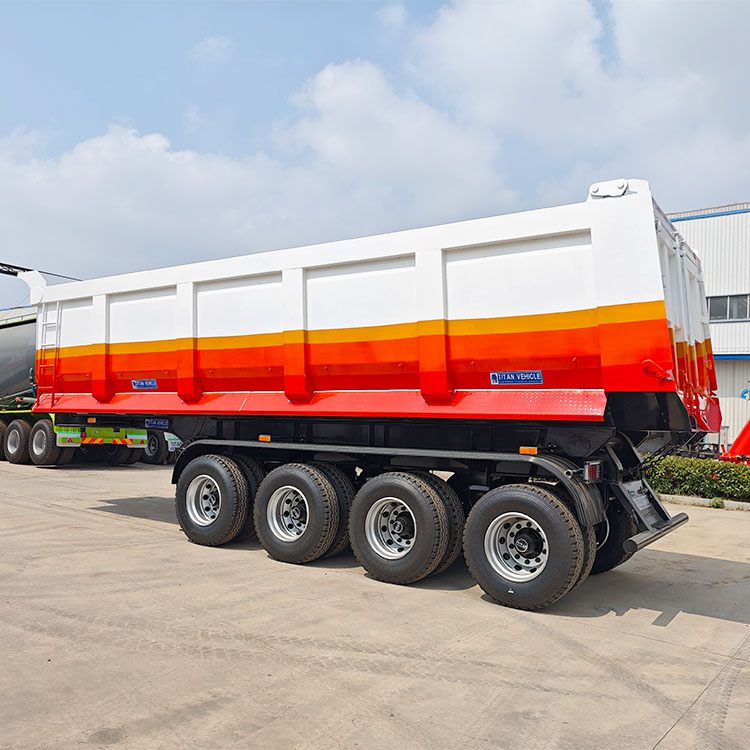

4 Axle 40 Cubic Heavy Duty Dump Semi Trailers in Mauritius

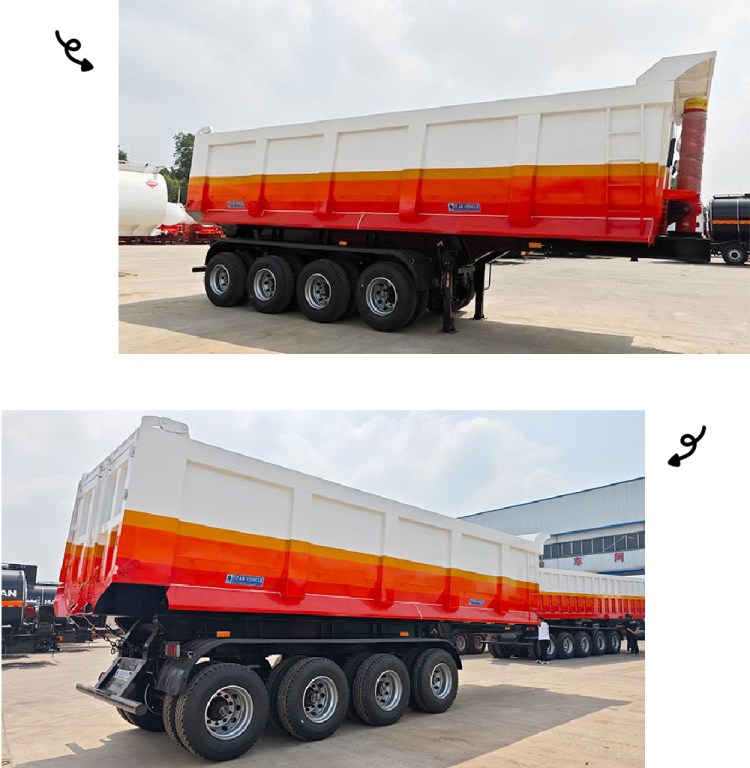

4 Axle 40 Cubic Heavy Duty Dump Semi Trailers in Mauritius
4 Axle 40 Cubic Heavy Duty Dump Semi Trailers in Mauritius

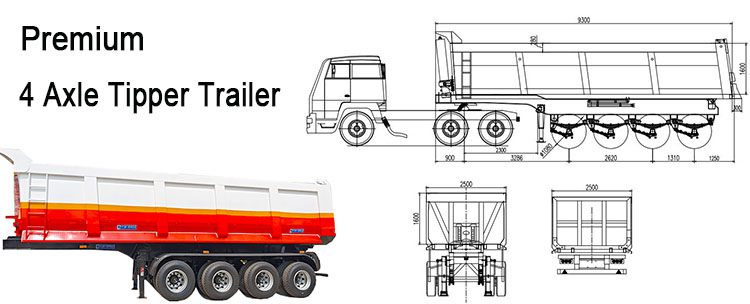

Overall dimension: 9900mm * 2500mm *3700mm
Volume: 40cubic

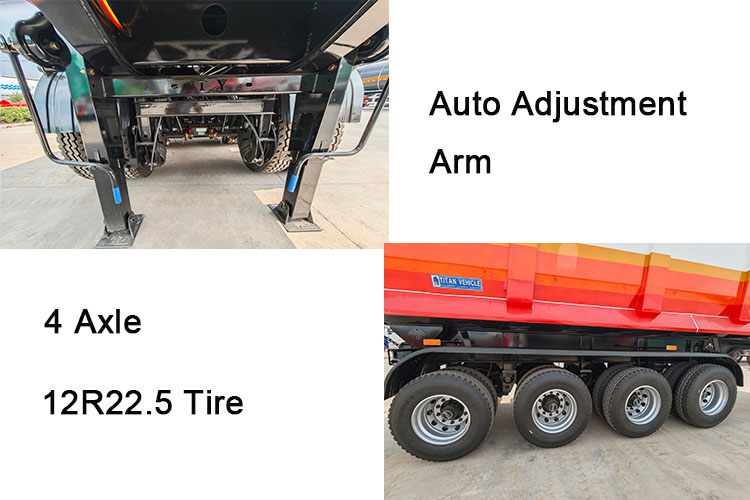

Axles: 4 axles
Suspension: Heavy duty mechanical suspension
Tipping system: HYVA lifting cylinder
Tire: 16 units

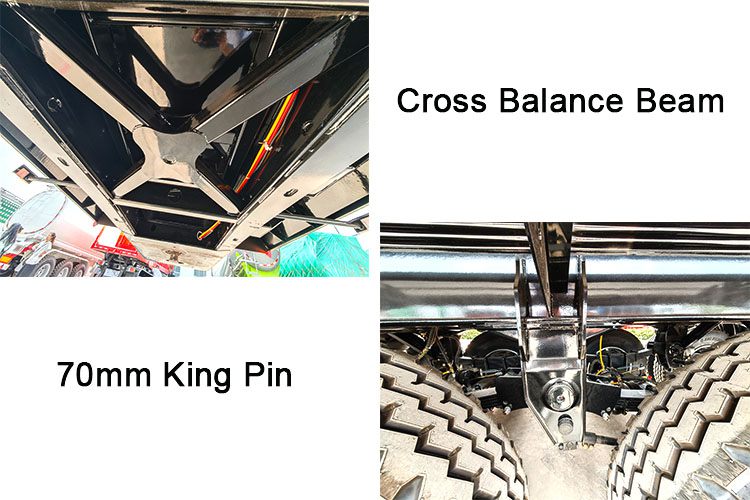

King pin: 90#
Landing gear: JOST
Brake system: WABCO
Electrical system: 24V, LED lights
4 Axle 40 Cubic Heavy Duty Dump Semi Trailers in Mauritius
1. Safety

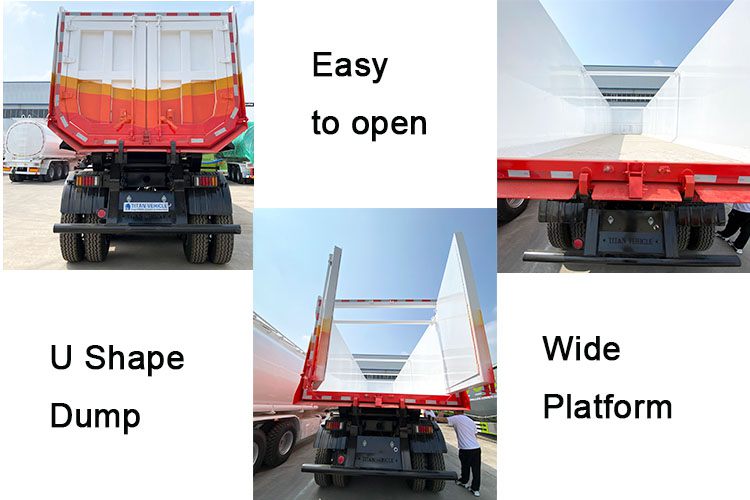

1.1 Double Cargo Lock for Back Door
The back door of the dump semi trailer is designed with double buckle. So the cargo will not slip or open in the transportation process, and the security is enhanced. Both on city road and country road, double buckle design can effectively prevent cargo leakage and guarantee security.
1.2 Turn over brackets
The 4 flip brackets provide extra support for the dump semi trailer to ensure stability when unloading cargo. The structure of these supports is reasonable. It aims to avoid the rollover accident due to the instability of the centre of gravity in the rollover process. And the safety of the operation is greatly enhanced.
1.3 Fire extinguisher rack can be designed
Considering the variety of security protection, it is possible to design a fire extinguisher rack in the back of the heavy duty dump trailers. This functional arrangement enhances the dump semi trailer's safety when carrying combustible and explosive goods. The extra protection is provided to the driver so that he can react promptly to an emergency.
2. Strengthened design
2.1 Reinforced ribs to increase payload
To further increase the load, the heavy duty dump trailers has added reinforcement ribs to the body structure. The ribs can be used to distribute the load efficiently. So the dump semi trailer can be more secure in carrying heavy items. And the risk of damage to the structure due to overloading will be lower.
2.2 The triangle plate is locked and strengthened at the crossing point of the sub beam.
In the back roll, the triangle plate is used to lock and reinforce the cross section of the sub beam. It greatly improves the structural stability of semi dump trailers. The triangular geometry makes it possible to withstand the pressure from all directions.Then the strength and durability of the heavy duty dump trailers in transit is ensured.

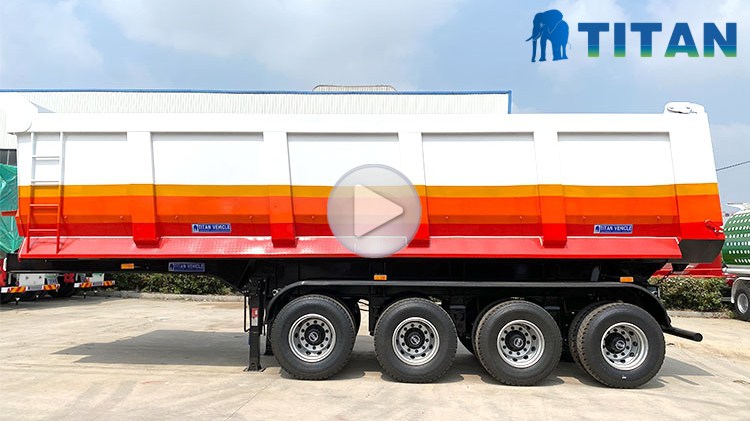

Please look at the video of heavy duty dump trailers.
Mauritius is experienced in offering spot goods of heavy duty dump trailers. It's nice to receive your information.
