The semi trailer with side wall owns a simple structure. It makes it easier to maintain.Users are supposed to carry out the routine inspection and cleaning. The semi trailer with side wall is in good shape. Polyurethane coating is useful to prolong its service life.
1. Basic structure of flatbed truck
1.1 Body structure
The basic structure of sidewall trailer consists of frame, chassis and flatbed. The frame employs 8mm thick main beam. It makes the body of sidewall trailer stronger and more stable. The 3 mm thick patterned base plate provides excellent anti-slip and abrasion resistance. It contributes to better stable placement of the cargo on the sidewall trailer. Side beam width of sidewall trailer is 140mm. This design strengthens the whole body of sidewall trailer. It's easy for semi trailer with side wall to withstand heavy loads and impacts.
1.2 Materials and design
Semi trailer with side wall is mainly made of Q345 high strength structure steel. The material owns superior tensile strength and toughness. It makes the sidewall trailer able to withstand the external pressure and friction. Also, the height and length of side wall can be customized. It's according to the customer's requirements. This is in order to satisfy the shipping demends of different kinds of cargo. The flexibility and practicability of semi trailer with side wall is enhanced.

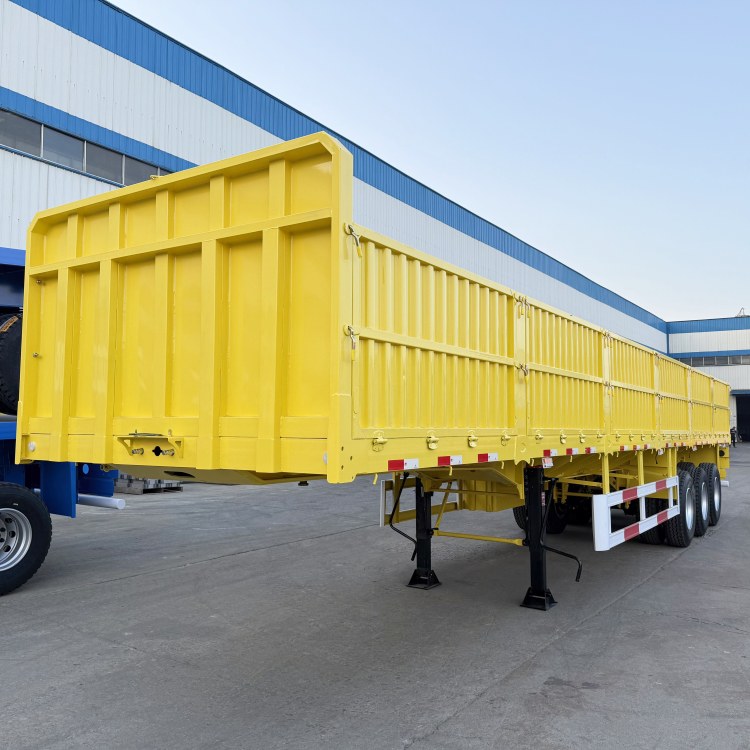

60 Tons Sidewall Trailer with Side Wall in Mauritius
60 Tons Sidewall Trailer with Side Wall in Mauritius
60 Tons Sidewall Trailer with Side Wall in Mauritius
60 Tons Sidewall Trailer with Side Wall in Mauritius
60 Tons Sidewall Trailer with Side Wall in Mauritius
60 Tons Sidewall Trailer with Side Wall in Mauritius
Dimension(mm): 12500x2500x3260mm
Trailer Sides: 1200mm
Loading capacity(ton): 60T
Axles: 3 axles, TITAN Brand

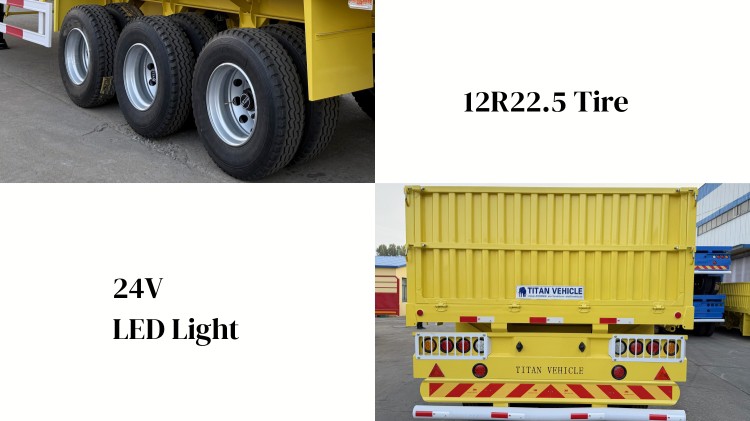

Tire: 12 units, 12.00R22.5
Suspension: Mechanical suspension
Main Beam :500mm Height, 8mm Thick, 140mm Width
Side Beam: 160mm Width
King Pin: 70mm
Though Beam: 6 sets

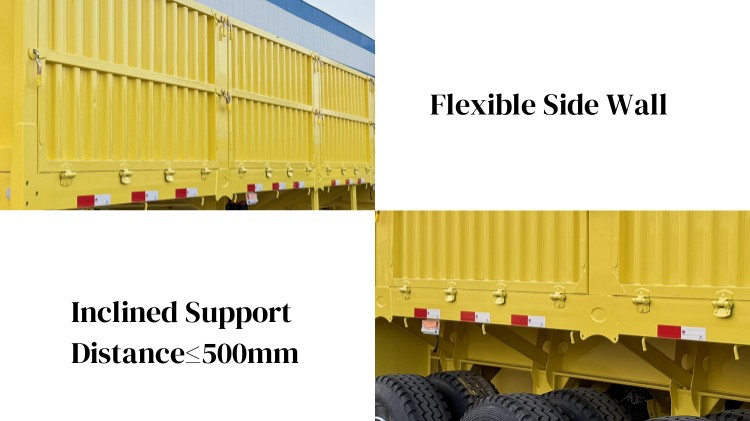

Distance of Inclined Support : ≤500mm
Brake Pad Width: 220mm

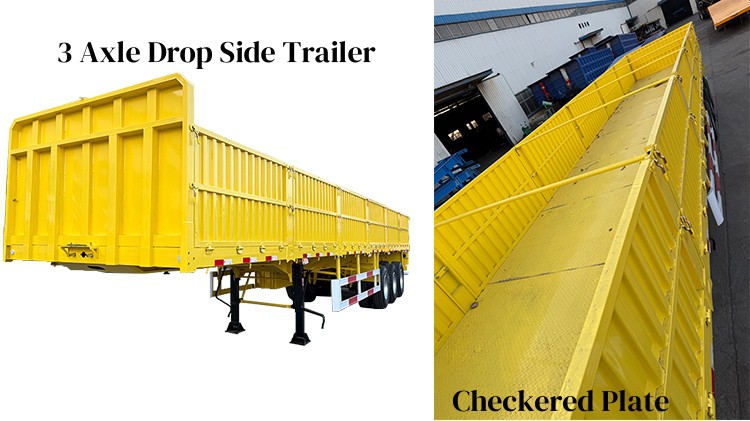

Bottom Plate: 3mm Anti-slip PlateDimension(mm): 12500x2500x3260mm
Trailer Sides: 1200mm
Loading capacity(ton): 60T
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12.00R22.5
Suspension: Mechanical suspension
Main Beam :500mm Height, 8mm Thick, 140mm Width
Side Beam: 160mm Width
King Pin: 70mm
Though Beam: 6 sets
Distance of Inclined Support : ≤500mm
Brake Pad Width: 220mm
Bottom Plate: 3mm Anti-slip Plate
1. Functions of semi trailer with side wall
1.1 Freight transport
Semi trailer with side wall is fit for the transportation of all kinds of cargo. Including bulk commodities like grain, livestock, and minerals. Its open design makes it easier to load and unload goods. The utility model is particularly applicable to frequent loading and unloading.
1.2 Flexible handling
The side wall is designed to facilitate the entry and exit of cargo. It's reliable for users to load and unload goods at different points of entry. Like the side and the back. The semi trailer with side wall is helpful to enhance your efficiency.
2. Safety assurance
The protection of side wall offers some protection to cargo during transportation. Moreover, it is effective in protecting against damage from outside objects. The sidewall trailer is dedicated to ensuring the safe arrival of the cargo at its destination.
3. Advantages of the semi trailer with side wall
3.1 High flexibility
The detachable sidewall is vital. The user will easily open or close it as needed. Various modes of transport are implemented. This flexibility makes the sidewall trailer extremely adaptable. The sidewall trailer is flexible to handle different kinds of cargo.
3.2 Strong adaptability
Sidewall trailer can be used efficiently in urban, rural and construction environments. Semi trailer with side wall is fit for city road. Semi trailer with side wall are not constrained by terrain.
3.3 Loading capacity
The semi trailer with side wall's loading skill is less than 60 tons. It can be used for flexible transportation of a variety of heavy materials.
3.4 Cost-effectiveness
Capital investment and running costs of sidewall trailers are relatively low.The sidewall trailer owns a simple and durable structure. As a result, the cost of maintaining and maintaining a sidewall trailer is relatively low. Therefore, the transport economy of sidewall trailer has been enhanced. It is benificial to decrease the whole running cost of sidewall trailer.
